11mm Pitch 4.2m/S Wire Winding B Type Ring Traverse Drive

Name: 11mm Pitch 42mS Wire Winding B Type Ring Traverse Drive
Brand: QIPANG
Price: 1 USD

Wholesale 11mm Pitch 4.2m/S Wire Winding B Type Ring Traverse Drive from china suppliers

Brand Name : QIPANG

Model Number : GP3-40

Certification : CE

Place of Origin : Shanxi, China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 units per month

Delivery Time : 10 working days

Packaging Details : Wooden box

Name : GP3-40 B type Rolling Ring Traverse Drive With Guiding Rollers

Other name : Rolling Ring Traverse Drive

Keywords : rolling ring drive

Model : GP3-40

Type : B type

Brand : XINDIAN

Origin : Shanxi, China

Warranty : 1 year

Weight : 7kg

Contact Now

GP3-40 B Type Ring Bearing Rolling Ring Traverse Drive Wire Guiding Roller For Wire Winding Machine China Factory Direct

The main advantages of the rolling ring xindian drive principle

1.Highest possible efficiency due to the fact that the gear and the payload are completely supported by roller bearings

2.Automatic traversing movement

3.Variable traversing speeds ranging from 0 m/s to a maximum of 4.2m/s; can also be separately set for the two directions with constant rotation of the shaft

4.Variable traversing width and traversing position

5.High dynamics at the points of reversal

6.Can be released from the shaft

7.Low operating costs

8.Low maintenance requirements

11mm Pitch 4.2m/S Wire Winding B Type Ring Traverse Drive

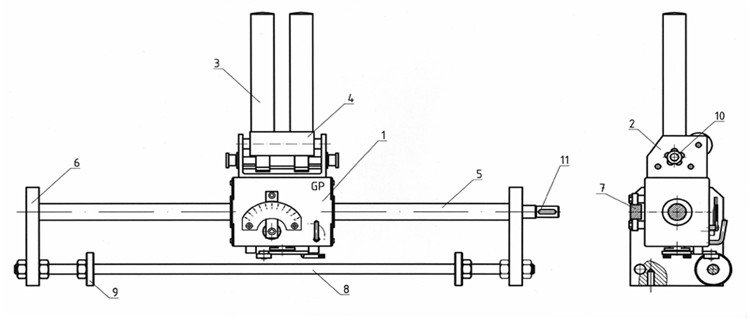

1 - folding carriage; 2 - roller bracket; 3 - vertical roller; 4 - horizontal roller; 5 - smooth shaft; 6 - support bracket; 7 - guide rail; 8 - hairpin; 9 - restrictive nut carriage stroke; 10 - bolt for adjusting the distance of m/s rollers; 11 - keyway under the pulley

Product Tags:

Parameters of linear traverse units
Model	d1	d2*	L1*	L2	L3	L4	L5	L6	Md
GP3-15	15	15	430	13	72	-	47	-	M8
GP3-20	20	14	450	14	102	40	41	25
