1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

Name: 18MM steel Manual wire straightening and cutting machine automatic wire straightener parts
Brand: QIPANG
Price: 1 USD

Wholesale 1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts from china suppliers

Brand Name : QIPANG

Model Number : Various models

Certification : CE

Place of Origin : Shanghai

MOQ : 5 unit

Payment Terms : L/C, Western Union, T/T

Supply Ability : 1000 units per month

Delivery Time : 5 working day

Packaging Details : Carton

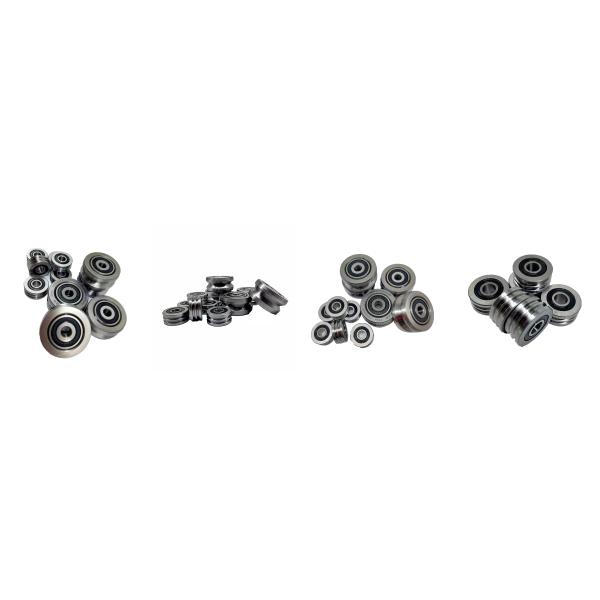

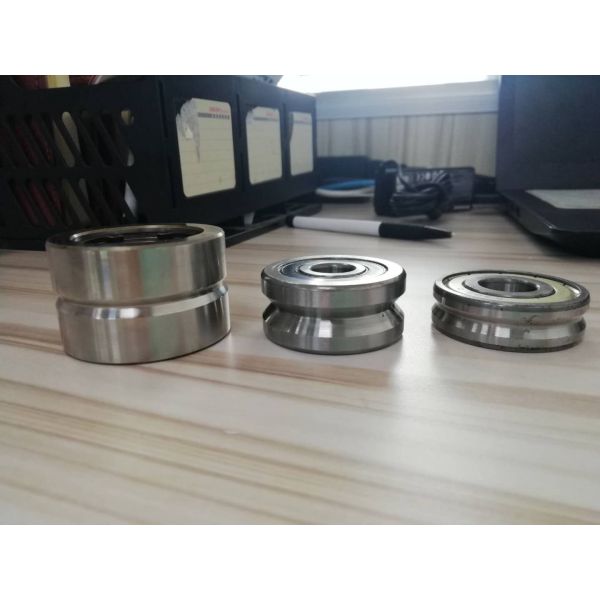

Type : Wire Straightening Rollers

Condition : New

After-sales Service : Video technical support

Application : bar/pipe/wire

Warranty : 7 months

Function : Straightening

Material : bearing steel

Main Market : Asia, Europe, America, Africa, etc.

Contact Now

1-8MM steel Manual wire straightening and cutting machine automatic wire straightener parts

JZQ 0.8-4.0/5.B.V detailed parameters

JZQ--- wire straightener

Straightening wire specification:Φ0.8mm----Φ4.0mm

30----- The number of straightening rollers

5------ The diameter of the straightening roller

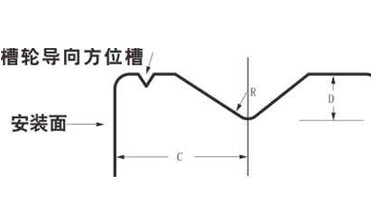

V------- The groove type of straightening roller; V,R,U,and customization

A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.

Straightener size:length 108mm×width 25mm×height77mm

Total weight of straightener:The machine is 3 kg, including package about 4 kg

Applicable to 0.8-4.0mm solid wire,pipe also can use

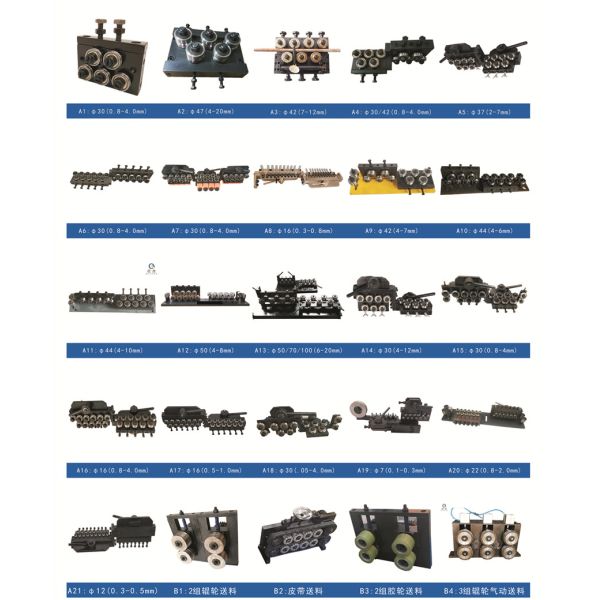

Product model	Wire diameter	Roller numbers	Roller diameter
JZQ0.1-.3/24,AV	φ0.1-0.3	24	7
JZQ0.3-.5/34,AV	φ0.3-0.5	34	12
JZQ0.5-0.8/26,AV	φ0.5-0.8	26	16
JZQ08-2.0/18,BV	φ0.8-2.0	26	23
JZQ2.0-4.0/18,AV	φ2.0-4.0	18	30/32
JZQ4.0-7.0/18,AV	φ4.0-7.0	18	44/50
JZQ7.0-12.0/18,AV	φ7.0-12.0	18	47/40
JZQ12.0-20.0/18,AV	φ12.0-20.0	18	70
JZQ0.8-4.0/5,AV	φ0.8-4.0	5	23/30/32
JZQ4.0-10.0/5,AV	φ4.0-10.0	5	42
JZQ4.0-10.0/18,BV	φ4.0-10.0	18	42
JZQ10.0-20.0/18,BV	φ10.0-20.0	18	70

Straightening machine through the straightening roll extrusion of bar to the change of straightness. There are generally two row of straightening roll, any number. There are also two roll straightener, rely on two roll (middle concave, hyperbola roll) the Angle of the change on the materials of different diameter straightening. Main types of pressure straightening machine, balance roll straightening machine and shoes roll straightening machine and so on.
