China made Qipang cheap gp40 rolling ring drive traversing pitch with dial
The main advantages of the traverse unit drive principle:
1. Highest possible efficiency due to the fact that the gear and the payload are completely supported by roller bearings
2. Automatic traversing movement
3. Variable traversing speeds ranging from 0 m/s to a maximum of 4.2 m/s; can also be separately set for the two directions with constant rotation of the shaft
4. Variable traversing width and traversing position
5. High dynamics at the points of reversal
6. Can be released from the shaft
7. Low operating costs
8. Low maintenance requirements
| Product Name | Rolling ring drive |
| Model No | GP3-40C |
| Material | Aluminum Alloy/Cast Iron |
| Brand | Qipang |
| The Linear Pitch | 1-11mm/r |
| Axial Thrust | 100N |
| Weight | 10 kgs |
| Usage | guide line |
Technical characteristics of the rolling ring drive series GP3:
| Model | Shaft diameter(mm) | Max pitch(mm) | Max thrust(N) | Max weight(kg) |
| GP3-15 | 15 | 11 | 110 | 11 |
| GP3-20/22 | 20 | 16 | 160 | 16 |
| GP3-30/25 | 30 | 25 | 260 | 26 |
| GP3-40 | 40 | 32 | 420 | 42 |
| GP3-50 | 50 | 40 | 700 | 70 |
| GP3-60 | 60 | 48 | 1000 | 100 |

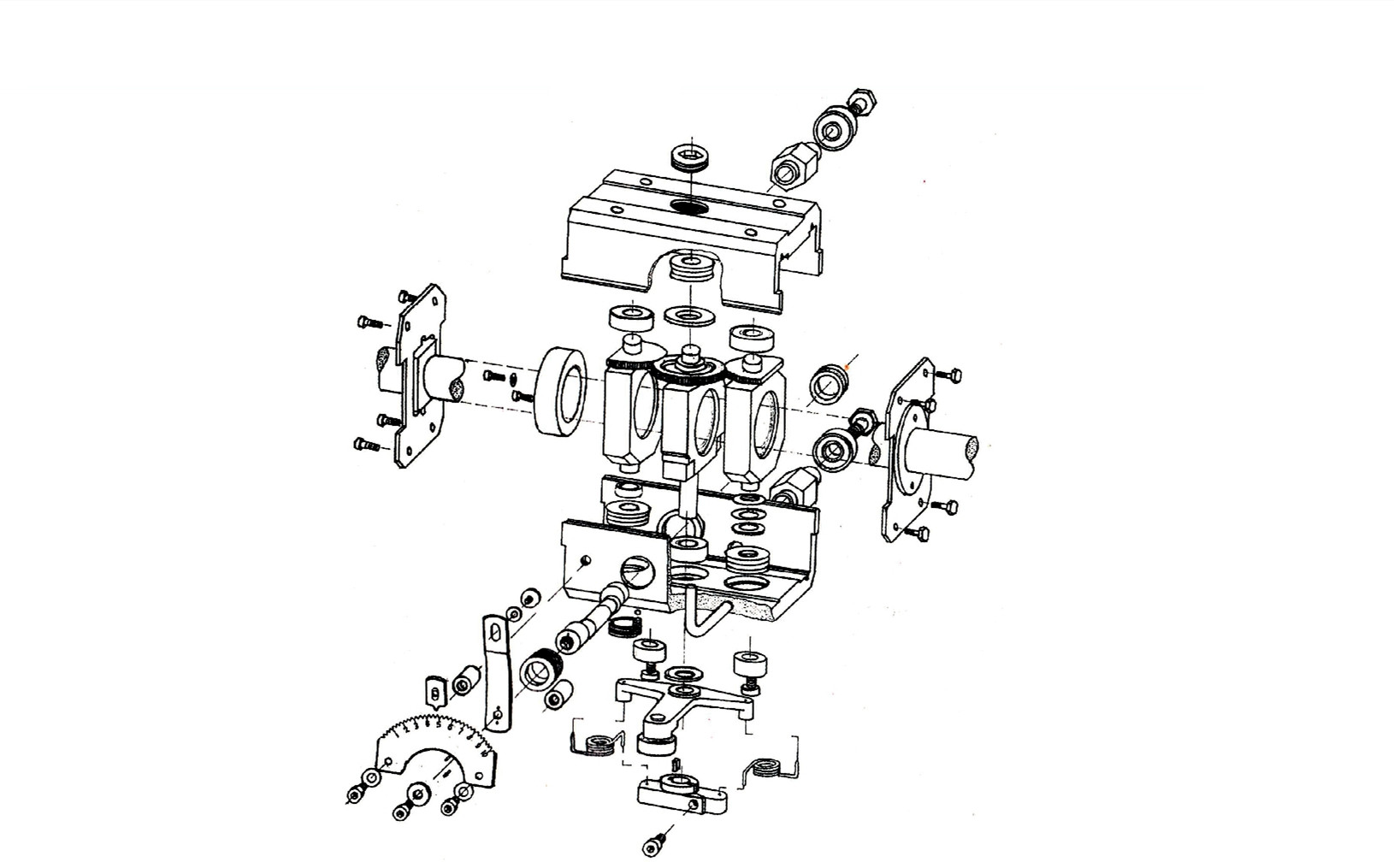

Rolling ring drive maintenance
When operating the folding carriage, it is necessary to regularly lubricate the smooth shaft (A) with oil in order to maintain the oiled working surface. The free-motion handle (B) must be in the “0” position when the folding carriage is not in use.
Disassembling the folding carriage is not allowed!
Business Scope:

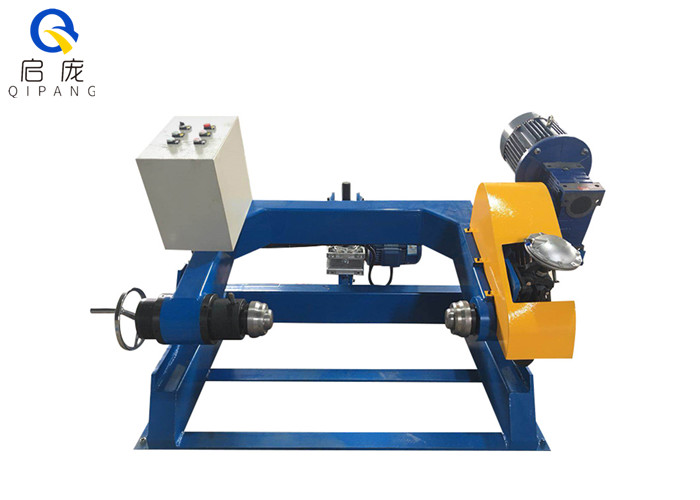

Our company mainly products roller guides ,rolling ring drives ,wire take up machine, wire coil winding machine ,automatic coiling and packaging machine, microcomputer automatic rolled plate machine ,wire straightener , wire straightening and cutting machine, etc. (Some as follow picture show)
After-sales service:
After the sale, the machine is guaranteed for one year under the premise of reasonable use of the customer. Maintain work at home and maintain response time of no more than 24 hours. Free maintenance during the warranty period, and the equipment maintenance service beyond the warranty period is subject to clear charges.
FAQ:
Q: Will you provide operation guidance for us?
A:We will send the instruction book with the machine and send you a video about how to operate the machine.
Q: How long is the warranty period?
A:12 months warranty, we will send you free spare parts by air within one week if there are any quality problems.
Q:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q:How about your delivery time?
A: Generally, it will send this product within three or five days after receiving your payment. The specific delivery time dependson the items and the quantity of your order.
Q:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
